Grinding machine for thermal paper coating slurry
Product Highlights
- High-precision double mechanical seal & discharge-screen structure — engineered for stable, leak-free operation under high-pressure grinding.
- Grinding-chamber rotor structure: silicon-carbide inner barrel offers high wear resistance and excellent heat dissipation. The SiC ceramic chamber features ultra-high thermal conductivity and diamond-grade wear resistance — more than 5× that of alloy steel.
Additional Services:
- Not only supply machines,But also offering technical support on how to manufacture qualified coating slurry.
- Thermal paper chemcial formulation support.
- Themal paper coating process production support.
Technical Specifications
|
Item |
Specification |
|
1. Nano Pin-Type Bead Mill (60 L) — Main Parameters |
|
|
Inner chamber material |
High-wear-resistant silicon carbide (SiC) ceramic |
|
Outer shell material |
Full 304 stainless steel |
|
Grinding rotor material |
Polyurethane (PU) |
|
Pin / peg material |
Polyurethane (PU) |
|
Front & rear end-plate material |
Polyurethane (PU) |
|
Zirconia bead charge |
160 kg (60 L model) |
|
Recommended grinding-media size |
|
|
Separator |
|
|
Throughput / flow-rate range |
600 – 2000 L (60 L model) |
|
2. Mechanical Seal |
|
|
Seal type |
New-type double mechanical seal |
|
Seal pressure resistance |
0.6 MPa (6 bar) |
|
Seal ring |
DuPont (USA) perfluoroelastomer (FFKM) seal ring |
|
Seal pressure protection |
0.3 MPa (3 bar) |
|
Sealing coolant |
Coolant similar to the processed material |
|
Coolant circulation |
Self-priming via mechanical-seal spiral sleeve |
|
Coolant temp. sensor |
Electric contact type |
|
Coolant pressure sensor |
Electric contact type |
|
3. Electrical Drive |
|
|
Main motor power |
75 kW, Wannan 4-pole motor (or top-tier domestic brand) with VFD |
|
Electrical components |
Schneider or CHINT |
|
Main shaft speed |
0 – 1200 rpm (60 L model) |
|
Tip / linear speed |
0 – 13.5 m/s |
|
Voltage |
380 V – 50 Hz |
|
Main shaft material |
40# steel, high-frequency hardened & chrome plated, precision ground |
|
Bearings |
Genuine imported NSK |
|
Drive |
Belt pulley; linear speed adjustable via pulley ratio |
|
Protection class |
IP55 |
|
Control system |
Siemens PLC with touchscreen HMI |
|
Protection devices |
Electric-contact pressure-sensing protection: auto shutdown on abnormal over-pressure in the chamber (e.g. blockage); auto shutdown if mechanical/shaft-seal leakage depletes the cooling reservoir; circulation pressure-sensing protection (auto shutdown on seal/coolant-line blockage); temperature-sensing protection (auto shutdown on chamber over-temperature). |
|
4. Feeding System |
|
|
Feeding method |
Pneumatic diaphragm pump |
|
Diaphragm pump |
Ingersoll Rand (USA), 1.5-inch (60 L model) |
|
Feed air pressure |
0.4 MPa |
|
Separator structure |
Static screen (discharge-screen gap replaceable) |
|
Separator type |
Turbine bead separator |
|
Inlet pressure |
0.1 MPa (max. 0.6 MPa) |
|
Outlet temperature range |
0 – 100 °C (adjustable) |
|
5. Cooling System |
|
|
Cooling method |
Stainless steel jacketed spiral water channel |
|
Cooling water flow |
Approx. 2000 L/h |
|
Cooling water temp. |
5 – 15 °C |
|
Cooling water pressure resistance |
0.6 MPa |
|
Water inlet / outlet |
1-inch hose |
|
6. Others |
|
|
Overall dimensions (mm) |
2200 × 1600 × 1950 (60 L model) |
|
Bearing housing |
Integral cast; one-pass machining on horizontal boring mill |
|
Weight (kg) |
3500 kg (60 L model) |
|
Color |
Subject to actual production |

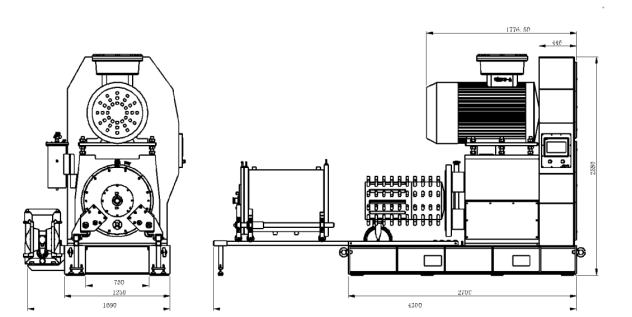

Structure drawing
